We manufactured a series of new energy high-efficient, disc-shaped, inner (outer) rotor, three-phase, Axial Flux Permanent Magnet Generator (AFPMG) with a coreless (ironless) stator.
Constructions and Materials:
Advantageous Features:
100kw permanent magnet generator 100kw permanent magnet generator 100kw permanent magnet generator
High efficiency but low speed
The efficiency of AFPMG, depending on the model, is up to 90%, Beccause of No mechanical drive losses, no rotor copper losses, no stator eddy current losses in the ironless (coreless) stator
100kw permanent magnet generator 100kw permanent magnet generator 100kw permanent magnet generator
Small Size and Lighter
AFPMG is uniquely lightweight and compact, construction is simple. Through using much less metal in their construction, the generator is highly durable and having a long life. Small size ang lighter save cost.
100kw permanent magnet generator 100kw permanent magnet generator 100kw permanent magnet generator
Super small maintenance costs
AFPMG is direct drive, no gearbox, oil-free system, low temperature rise
The use of air-cooling reduces maintenance costs and also significantly strengthens the autonomy of power units
Low starting torque
AFPMG no cogging torque and torque ripple, so the starting torque is very low, for direct-drive small wind turbine (SWT), the starting wind speed is less 1m/s.
Superior reliability
Very low noise, less vibration, no mechanical belt, gear or lubrication unit, long life
Environmentally friendly
The 100% environmentally clean technology and materials. the future of energy source.
Click here for more information
Main Applications
1,Small wind generators(SWT)
2,Small electrical generators driven by gasoline or diesel engines
3,Electric vehicle drive machines, as motor and generator.
4,Hydro Power
Operating Range of Permanent Magnet Generator (PMG)
Permanent Magnet Generators (PMG) is a perfect choice for small wind turbine (SWT) applications, because of lighter construction and technical performance.

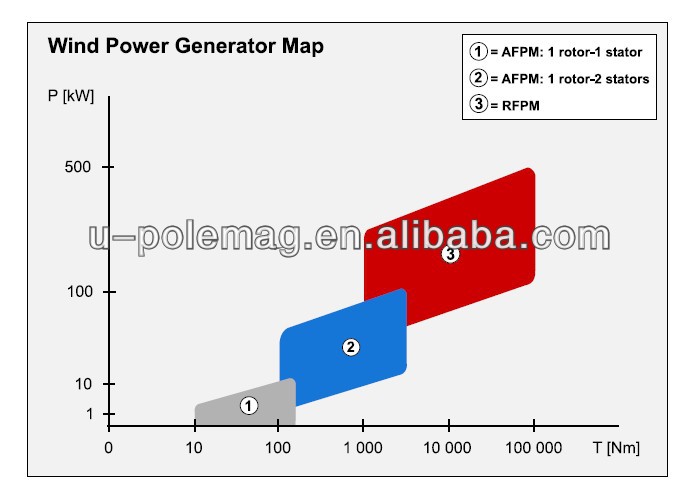

Operating range of PMG covers the needs of small wind turbine (SWT). For 1-5KW wind turbines, can use a single rotor-single stator of AFPMG, for 5KW-50KW turbines, can use AFPMG with a construction of single rotor-double stators.
The power rating above 50KW is covered by Radial Flux Permanent magnet Generator (RFPMG).
| Model | Rated output power | Rated speed | Rated output voltage | Stator moment | Weight |
| KW | RPM | V | Nm | kg |
| AFMPG-770 | 10 | 250 | 380 AC | <0.5 | 145 |
| 7.5 | 200 | 380 AC | < 0.5 |
| 5 | 150 | 380 AC \ 220 AC |
| AFMPG-560 | 3 | 180 | 380 AC \ 220 AC | < 0.5 | 90 |
| 2 | 130 | 380 AC \ 220 AC \ 112 DC |
| 1.5 | 100 | 380 AC \ 220 AC \ 96 DC |
| AFMPG-460 | 2 | 180 | 380 AC \ 220 AC \ 112 DC | < 0.3 | 52 |
| 1.5 | 150 | 380 AC \ 220 AC |
| 1.0 | 130 | 220 AC \ 112 DC\ 56 DC |
| AFMPG-390 | 2.0 | 350 | 380 AC \ 220 AC \ 112 DC | < 0.3 | 34 |
| 1.0 | 180 | 220 AC\112 DC\56 DC |
| 0.5 | 130 | 112 DC \ 56 DC |
| AFMPG-330 | 1.0 | 350 | 220 AC \ 112 DC \ 56 DC | < 0.3 | 22 |
| 0.5 | 200 | 112 DC\56 DC |
| 0.3 | 150 | 28 DC \ 56 DC |
| 0.2 | 100 | 56DC \ 28 DC |
| AFMPG-270 | 0.5 | 350 | 56 DC \ 28 DC | < 0.1 | 11 |
| 0.2 | 200 | 28 DC \ 14 DC |
| 0.1 | 130 | 28 DC \ 14 DC |
You may also like
Click here for more information
Options
Rated power: 0.1KW-10.0KW
Rated speed: 100RPM-1200RPM
Rated voltage: 14VDC-400VAC
Generator outer diameter: 110mm-770mm
OEM Supported
Quick quotation needs:
1. Dimension and tolerances
2. Output power, voltage and RPM
3. Starting torque
100kw permanent magnet generator 100kw permanent magnet generator 100kw permanent magnet generator
Operating Instructions
1. Working temp: under altitude of 2,500 meters, -30 ° C to +50 ° C
2. Before installation, gently turning the shaft or housing to confirm rotation flexibility, no abnormal sound.
3. AFPMG output is three-phase, three-wire output, before installation, use 500MΩ Megger to check the insulation resistance between the output wire and case, should not be less than 5 MΩ
4. If AFPMG is inner rotor generator, in the installation process, should ensure that the locking screw in place, it is very important.
Warranty: 2-5 years
